Products - AC CAPACITORS FOR LIGHTING AND MOTORS - Lighting Capacitors CBB80 Series
Product Model: LC25-PCW
| Product Model: |
LC25-PCW |
| Product Name: |
Lighting Capacitors CBB80-1 |
| Description: |
Model reference:CBB80-1
Rated Voltage:250Vac
Rated Frequency:50/60Hz
Rated Capacitance:2uF to 16uF
Capacitance tolerance:+/-10% or +/-5% (upon request.)
Rated Min.&Max. temperatures: -40~+85 degrees
Climatic category:40/85/21
Protection Degree:IP00
Dissipation Factor:less than 0.002 at 50Hz,20 degrees
Test Voltage between terminals:2Un,2sec
Test Voltage between terminals and case: 2KV,2sec
Reference Standard: EN61048,EN61049
Approvals: CE,TUV

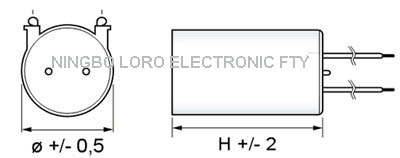

Case type: Plastic case
Terminals:Flexible or rigid leads length 18cm(othen length on request)
Fixing: Fixing feet |
| Packing: |
|
 |
Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps,grill lamps,etc.
|
